Product Description

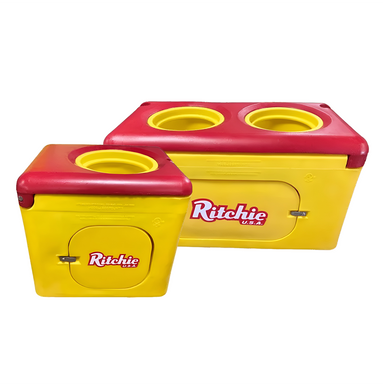

The EcoFount waterers are the newest, most energy efficient, electric standard heated line of Ritchie automatic waterers. The flip top cover design allows easy cleaning and maintenance and the fully insulated casing provides excellent protection against cold temperatures. The stainless steel trough features thermostatically controlled heating elements for ice-free service during severe winter conditions.
Key Features
- Designed with energy efficiency in mind. The stainless steel trough is surrounded by extremely durable and fully insulated poly.
- Patented plastic drink well helps insulate water and keep thermal cap in place.
- Flip-top cover feature for easy cleaning and maintenance.
- Electric heat with adjustable disc thermostat.
- Cable heater provides extra valve and supply line protection.
- Trough is 304 stainless steel for long life.
- EcoFount unit comes complete and ready to install to your electric and water lines.
- 4 - 5in x 3/8in Stainless Steel anchor bolts recommended.
Typical Applications

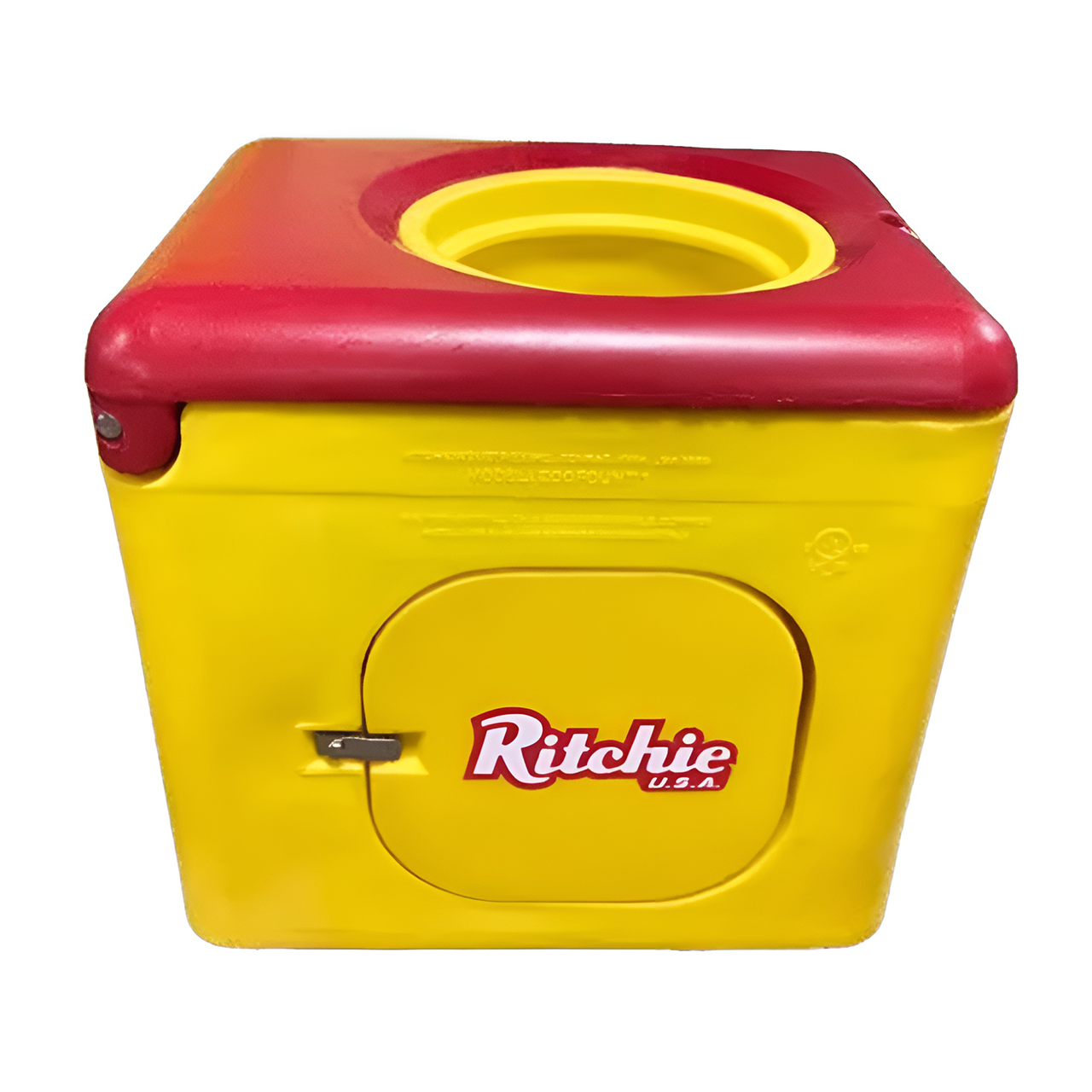

- EF1: Ideally used in small pens or paddocks.

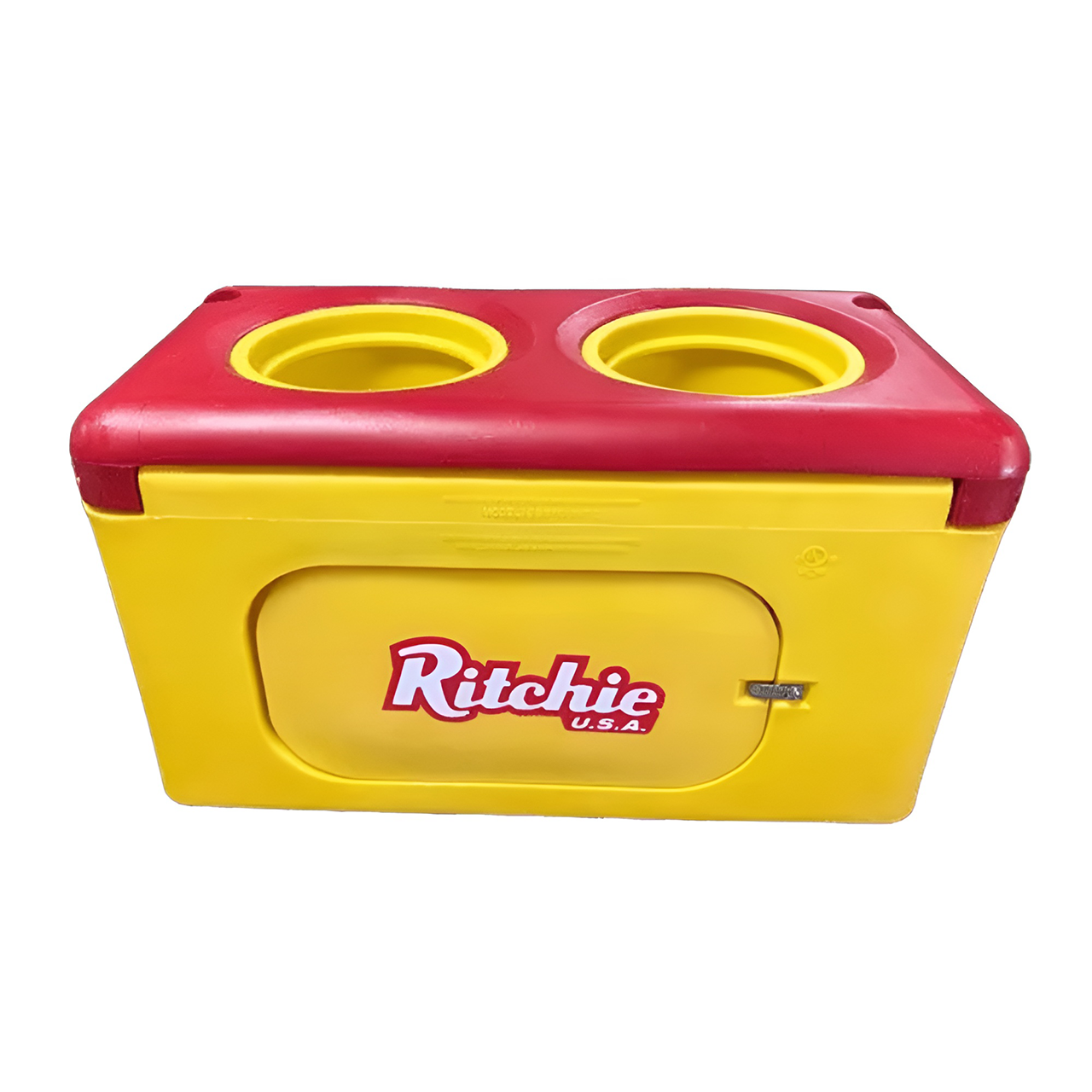

- EF2: Ideally used when splitting a fence for small pens and paddocks.
Waterer Specs
| Model | Tank Length | Tank Width | Tank Height | Drinking Height | Capacity (gal) | Capacity (animals) | Included Heat | Weight |
| 1 | 18in | 18in | 20in | 20in | 3.5gal | 15 head dairy / 30 head beef / 30 head horses | 173W (1.4A@120V) | 41lbs |
| 2 | 36in | 18.5in | 20in | 20in | 6.5gal | 30 head dairy / 60 head beef / 60 head horses | 298W (2.5A@120V) | 75lbs |
Specifications
- Weight: 41 oz
